Electric hoist gantry crane

Product Detail

Product Tags

The electric hoist gantry crane is used in conjunction with CD1, MD1 and other electric hoists. It is a small and medium-sized crane that runs on rails. The single main girder is suitable for the rated lifting capacity of 1-20t, the double main girder is suitable for the rated lifting capacity of 1-50t, the applicable span is 12-30 meters, and the working environment is within -20°C-40°C. This product is a general-purpose crane, which is mostly used for loading and unloading or grabbing materials in open places and warehouses. According to its structural characteristics, our company divides it into the following different models:

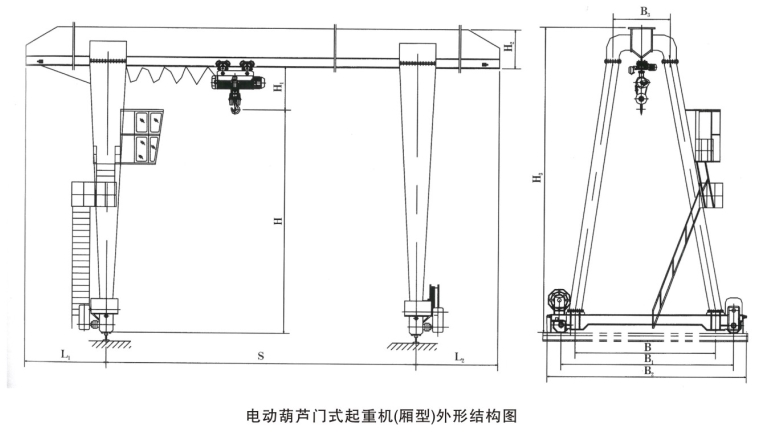

Single girder hoist gantry crane-one box type

Single girder hoist gantry crane – flower stand type

On the basis, a new type of electric hoist with light weight, modularization, maintenance-free and high-tech content is completed with imported configuration, new materials and new technology. The lifting motor and reducer imported from Germany are adopted. The integrated compact design of lifting motor, reducer, reel and lifting limit switch saves the user’s use space. The modular design effectively reduces maintenance time and cost while enhancing the reliability of the mechanism. It has faster and more lifting speeds and a variety of pulley ratios to choose from.

1588753738651041

1588753742827878
