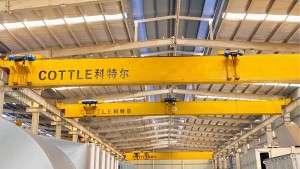

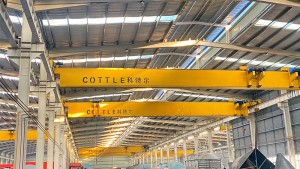

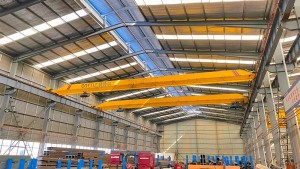

The single-girder crane is an ultra-low headroom light and small crane. The electric hoist is located on the side of the main beam, which increases the service space of the hook and can reduce the height and cost of the factory building. The product has the advantages of large wheel base, stable operation, compact structure, good rigidity, sensitive operation, low noise, safety and reliability, and beautiful appearance. High and low places.

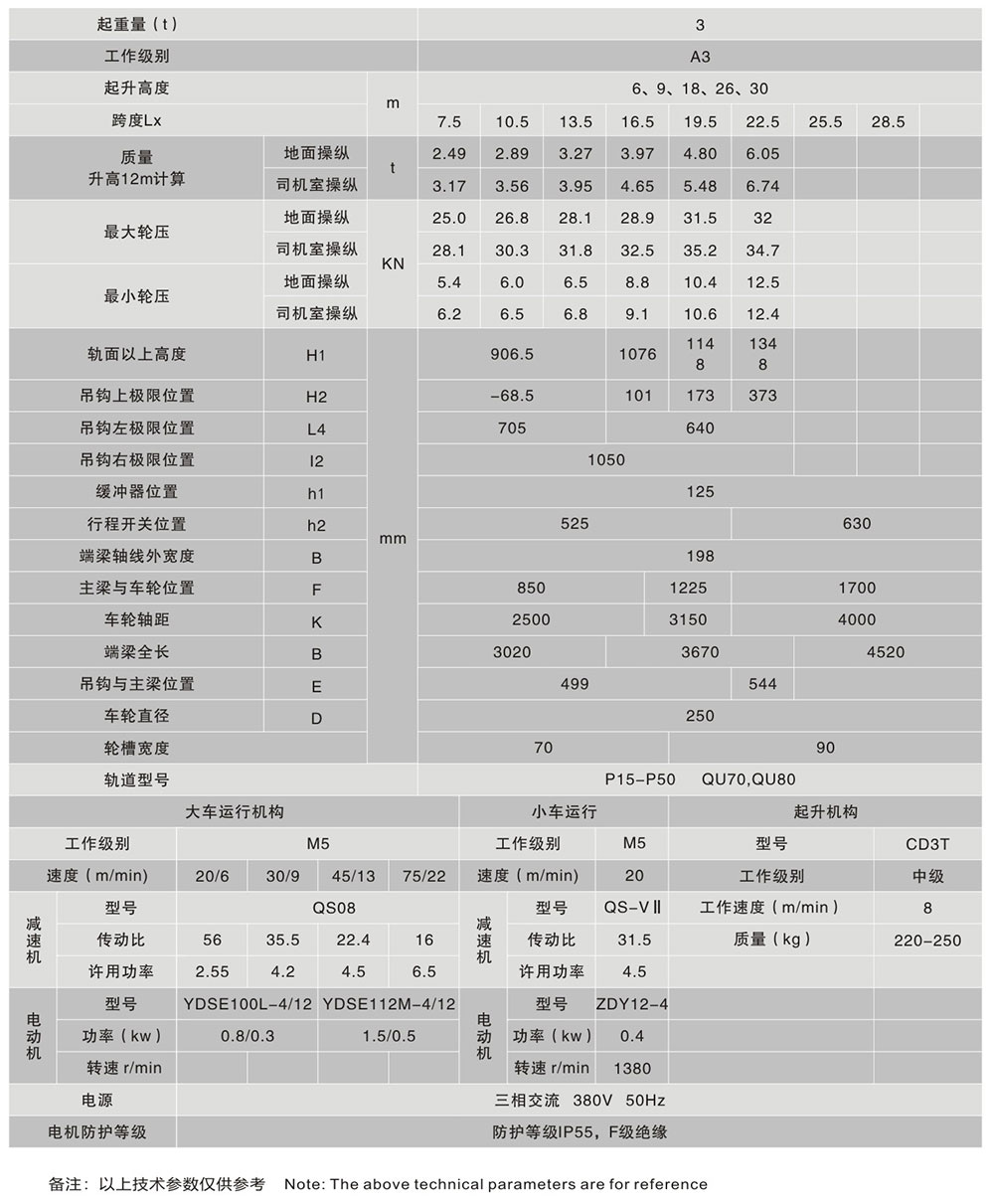

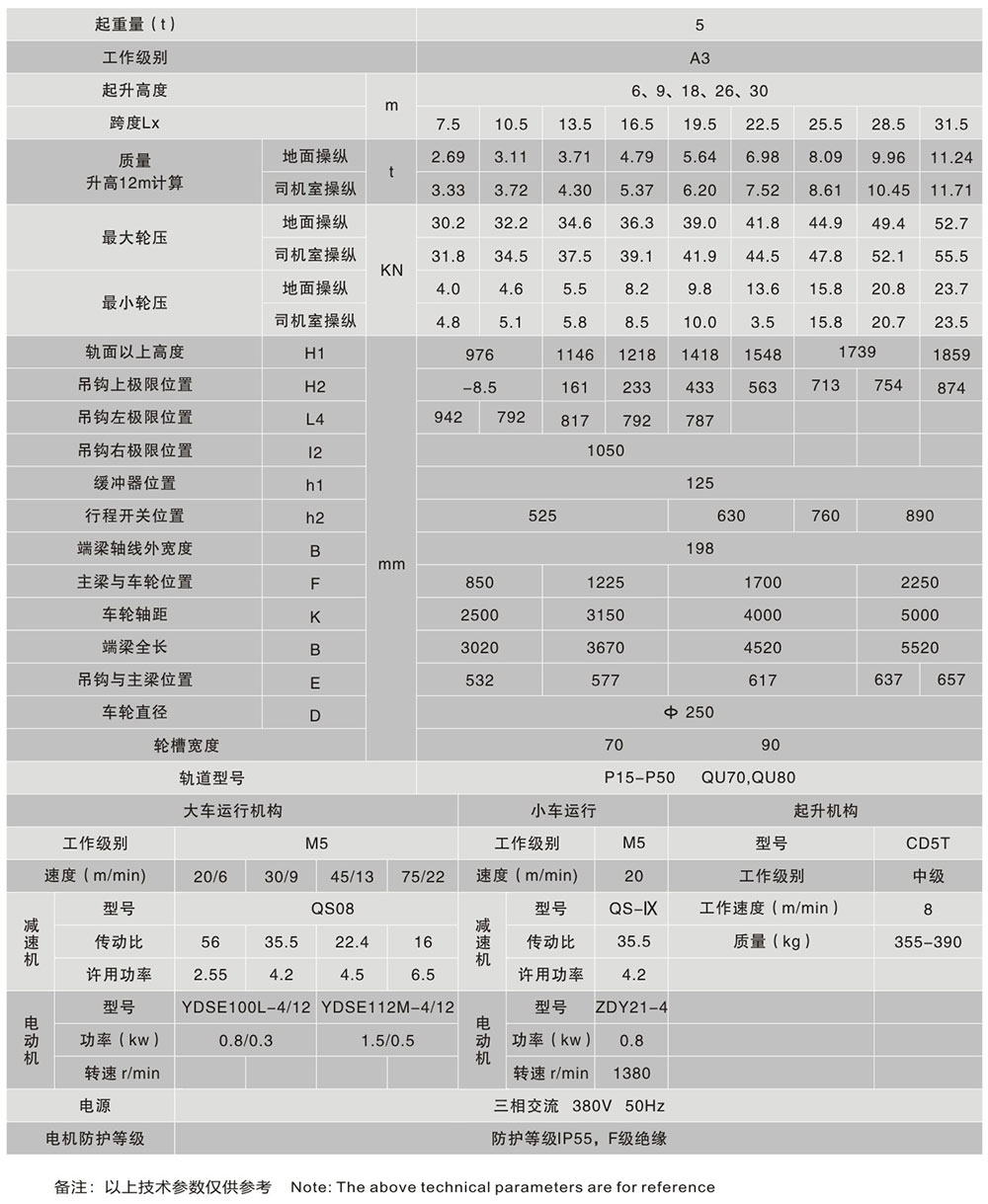

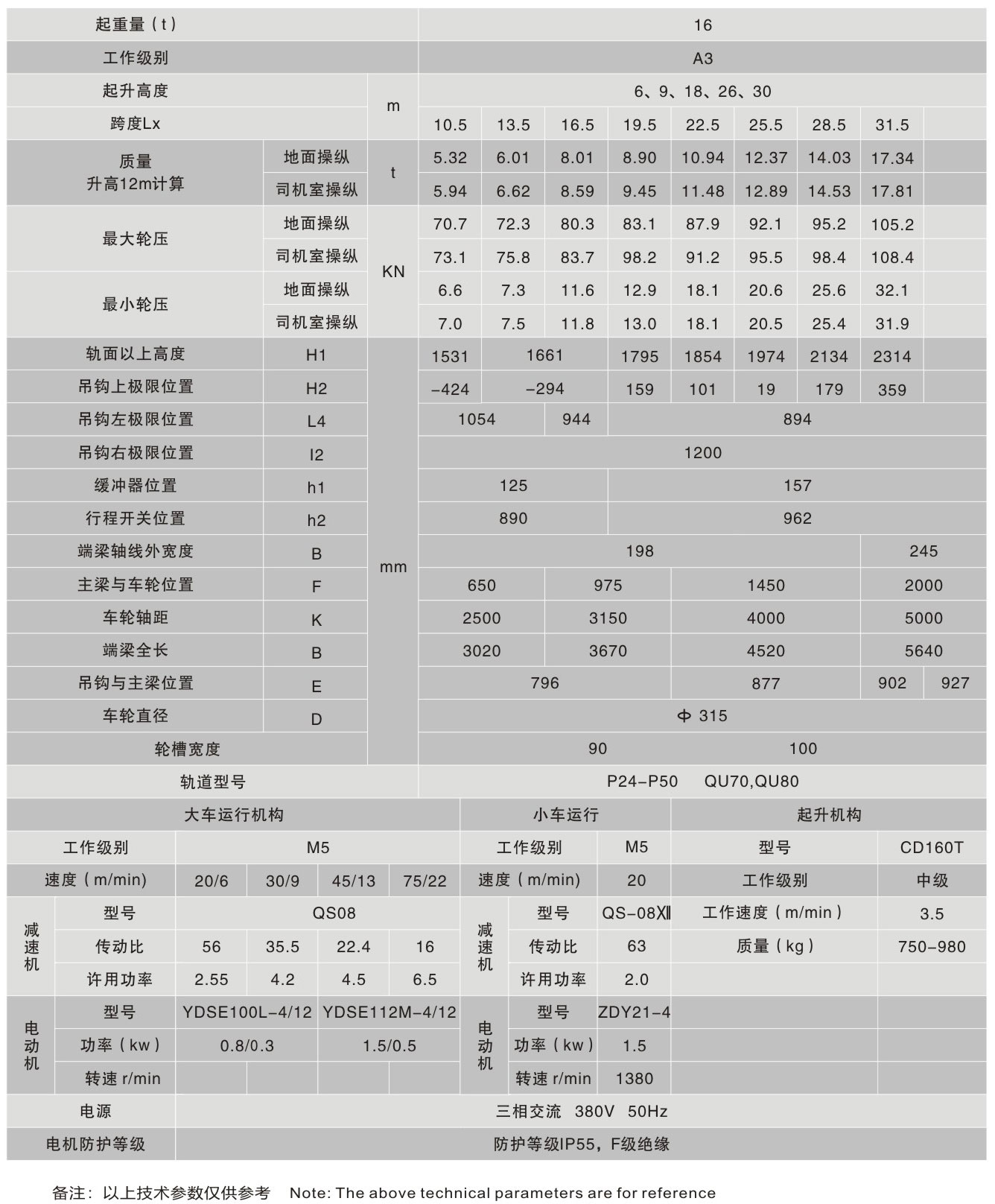

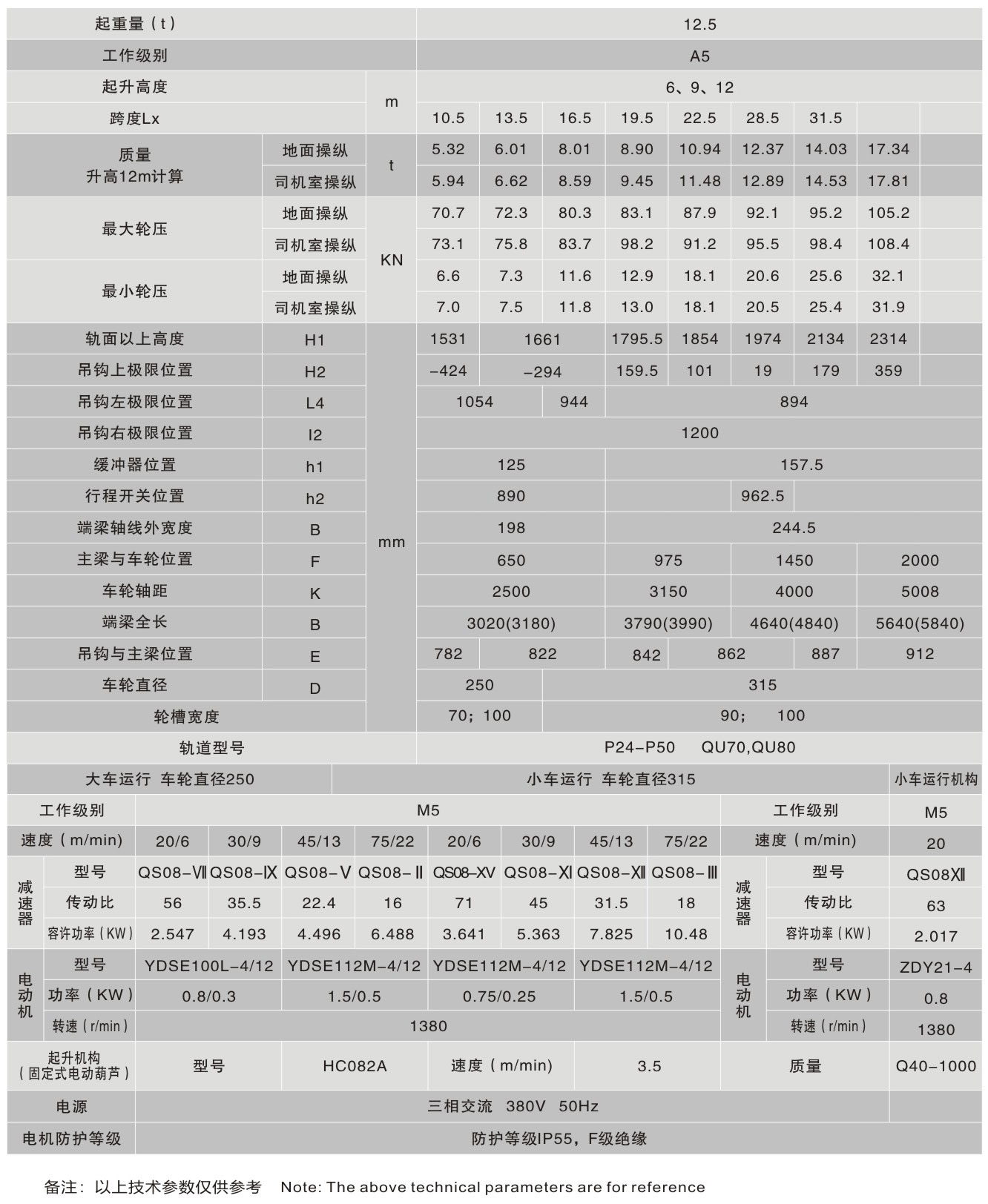

The single girder crane is designed and manufactured according to GB/T 3811-2008 and JB/T 1306-2008 standards, and it is a light lifting equipment used in conjunction with CD1 and MD1 electric hoists. Its rated load is 3t～16t, span is 7.5m-22.5m, working level is A3, A4, lifting height is 3～12m, and the mode of operation is mainly the ground manipulation mode (ground operation, remote control operation, ground I remote operation). If the span and lifting height exceed the range listed in the sample, we can also make non-standard designs according to user needs.
